LONG FLEX CIRCUITS

Solutions for Medical Applications

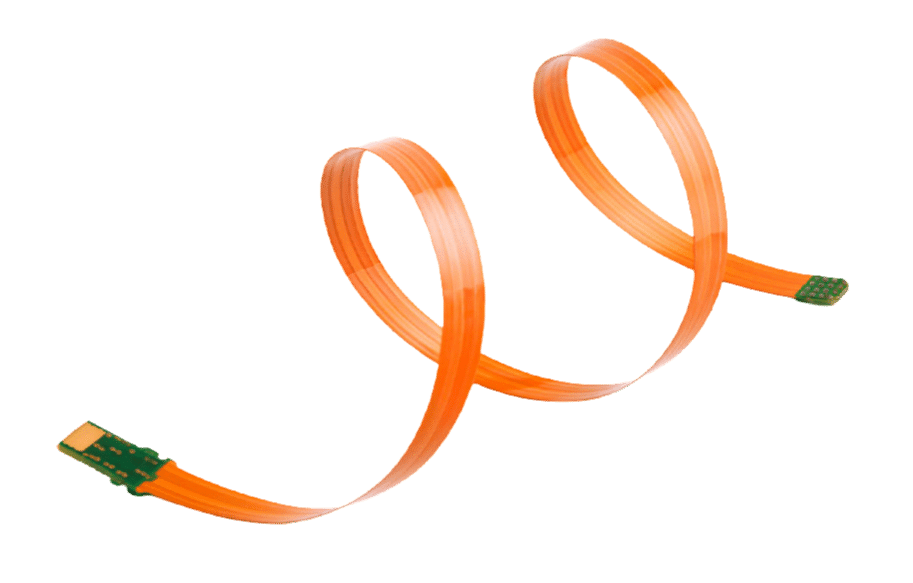

long flex circuits

Tech Etch long flex circuits support lengths up to 60 inches for space-constrained, motion-driven medical applications requiring ultra-thin, lightweight interconnects.

Process-validated through Laser Direct Imaging, etch, and plating, these builds accommodate fine line/space geometries, ultra-thin core constructions, and 9 μm metal layers with precise layer-to-layer alignment. Optimized for catheter-based systems, surgical instrumentation, imaging devices, and wearable platforms, they provide stable electrical performance and mechanical reliability under dynamic flex conditions.

made in usa

Contact our U.S.-based engineering team today to discuss standard options or custom modifications tailored to your needs.

Medical APPLICATIONS

WEARABLE MEDICAL

WEARABLE
MEDICAL

• Full-body biosensors embedded in garments or adhesive patches
• Post-surgical monitoring systems covering wide anatomical zones

IMAGING EQUIPMENT

IMAGING
EQUIPMENT

• Interconnects for ultrasound probes and imaging consoles
• Enhanced Flex Circuits for MRI and CT scan systems

aerospace

CATHETER
BASED TOOLS

• Embedded circuits in electro-physiology and ablation catheters
• Real-time signal routing from endoscopic tools to processors

SURGICAL
ROBOTICS

• Power/signal delivery
through articulating arms and instrument tracks
• Withstands repetitive motion and sterilization demands

Specifications

ATTRIBUTE PREFERRED ADVANCED
Lead Width (min) 0.003″ 0.002″
Lead Spacing (min) 0.003″ 0.002″
Flex Length (max) 40″ 60″

Click the button to get a quote.
