2591 D-Sub Conductive Fabric Over Foam Series

Tech Etch, a global supplier of EMI/RFI shielding materials, introduces its new 2591 Series Conductive Fabric-Over-Foam D-sub Gasket product line. These UL94 V-0 and halogen-free gaskets are made with electrically conductive nickel-plated copper fabric over a polyurethane core and are available with multiple mounting options, as shown below. Easy to compress, these gaskets offer a wide operating range to fit most applications without additional hardware.

STICK ON MOUNTING

Tech Etch 2591 connector gaskets have two options for adhesive mounting applications: traditional non-conductive adhesive and readily available conductive tape for applications where additional conductivity is desired. Apply only on a clean, oil-free surface and allow 24 hours curing time.

SPECIFICATIONS

  • FOAM CORE: Open-Celled Polyurethane Foam

  • METALIZED FABRIC: Nickel Copper Ripstop

  • SERVICE TEMPERATURE: –40°F to 158°F (–40°C to 70°C)

  • SURFACE RESISTIVITY: (ASTM F390) <0.07 Ohms

  • SHIELDING EFFECTIVENESS: (MIL DTL83528C) ≥85dB (10MHz-3GHz)

  • COMPRESSION SET: (ASTM D3574) ≤15%

  • COMPRESSION FORCE: 1-3 lbs per sq. inch at 50% compression

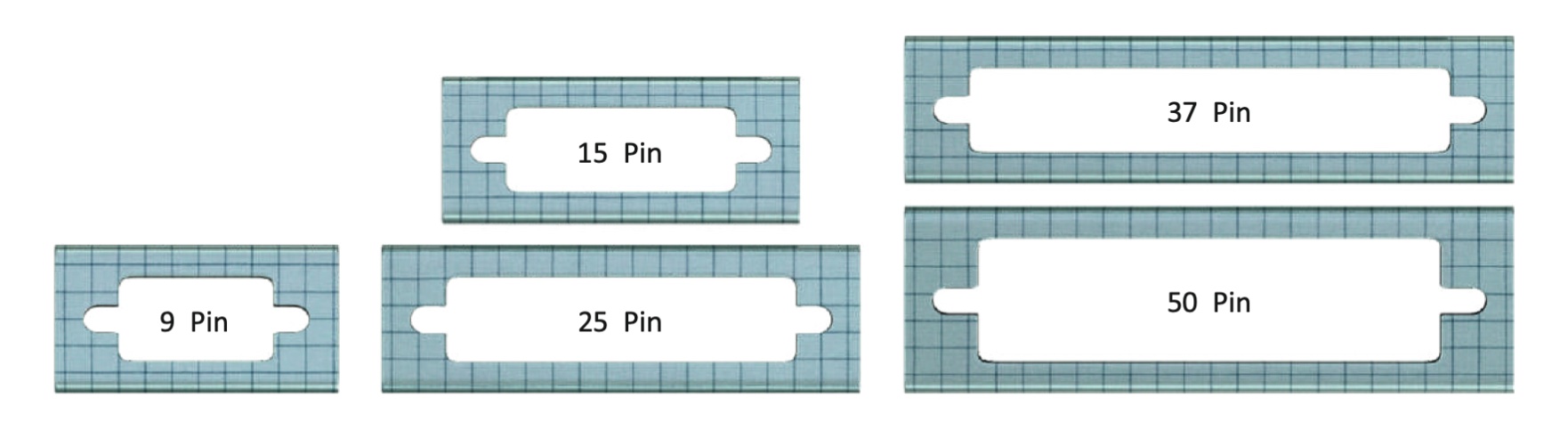

2591 Series Conductive Fabric-Over-Foam D-sub Gasket

MATERIAL CHARACTERISTICS

High Shielding
Effecveness

Low
Compression

Low Surface
Resisvity

Fabric – Nickel
Copper Ripstop

Fabric – Nickel
Copper Ripstop
2591 D-Sub Conductive Fabric Over Foam Series
